90K55-741743 741D43 YVP-XG Y电机 YAMAHA印刷机 Y轴马达

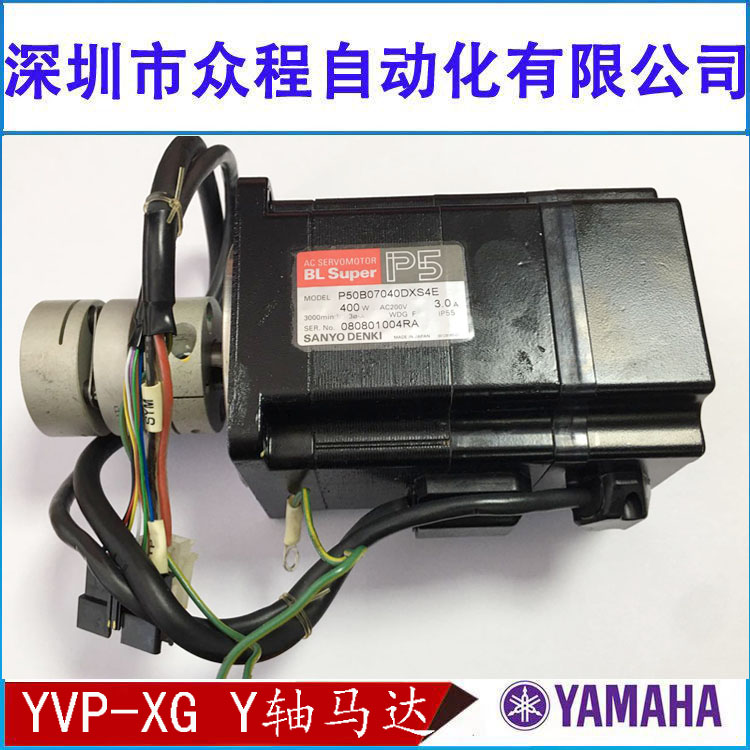

三洋电机 P50B07040DXS4E 400W马达

1 KGJ-M2601-00X POST, SY AXIS 4
1-1 KGJ-M2601-01X POST,SY AXIS 4 2004/7/10 M3Y0008 NG
2 KGJ-M2602-00X FRAME L, SY AXIS 1
2-1 KGJ-M2602-01X FRAME L,SY AXIS 1 2004/7/31 M3Y0008 NG
2-2 KGJ-M2602-S0X FRAME,SY AXIS SET 1 (2007/2/8) MD10036 OK
3 KGJ-M2603-00X FRAME R, SY AXIS 1
3-1 KGJ-M2603-01X FRAME R,SY AXIS 1 2003/12/9 M3Y0008
3-2 Delete (2007/2/8) MD10036 OK
4 KGJ-M2604-00X GUIDE, SY AXIS 1
5 KGJ-M2605-00X HOLDER NUT, SY 1
6 KGJ-M2606-00X HOLDER BRG., SY 1
7 KGJ-M2607-00X HOLDER, MOTER SY 1
8 KGJ-M2610-00X BRACKET, STOPPER 4
9 KGJ-M2612-00X DAMPER, SY 4
10 KGJ-M2625-00X CABLE DUCT 1
11 KGJ-M2626-00X PLATE, CABLE 1
12 KGJ-M2630-00X BRACKET, SENSOR 1
13 KGJ-M2632-00X DOG, 2ND LIMIT 2
14 KGJ-M2633-00X DOG, ORG. 1
15 KGJ-M2635-00X FRAME,CAMERA 1
15-1 KGJ-M2635-01X FRAME, CAMERA 1 2002/3/22 M210039 NG
15-2 KGJ-M2635-02X FRAME,CAMERA 1 2004/8/5 M3X0077 NG
16 KGJ-M2671-00X BALL SCREW, SY AXIS 1
17 KGJ-M2693-00X BRACKET 1, DUCT 1
18 KGJ-M2694-00X BRACKET 2, DUCT 4
19 KGJ-M2695-00X BRACKET 3, DUCT 1
19-1 KGJ-M2695-01X BRACKET 3,DUCT 2 2004/7/31 M3Y0008 NG
20 KGJ-M2696-00X BRACKET 4, DUCT 1
20-1 Delete (2003/12/9) M3Y0008
21 KGJ-M3133-00X COLLAR, DAMPER 4
22 KW3-M653A-10X SENSOR, 1-1 ASSY 2
23 KG2-M2604-00X SUPPORT UNIT 1
24 KV4-M2220-00X COUPLING Z 1
25 90K55-741743 AC SERVO MOTER 1
25-1 90K55-741D43 AC SERVO MOTOR 1 (2005/7/13) MB70051 OK
26 91317-03008 BOLT HEX. SOCKET HEAD 4
27 91317-04010 BOLT HEX. SOCKET HEAD 6
28 91317-04012 BOLT HEX. SOCKET HEAD 4
29 91317-04014 BOLT HEX. SOCKET HEAD 4
30 91317-05010 BOLT HEX. SOCKET HEAD 14
31 91317-05012 BOLT HEX. SOCKET HEAD 2
32 91317-05016 BOLT HEX. SOCKET HEAD 16
33 91317-05020 BOLT HEX. SOCKET HEAD 8
34 91317-05030 BOLT HEX. SOCKET HEAD 4
35 91317-06010 BOLT HEX. SOCKET HEAD 8
36 91317-06012 BOLT HEX. SOCKET HEAD 2
37 91317-06014 BOLT HEX. SOCKET HEAD 2
38 91317-06020 BOLT HEX. SOCKET HEAD 4
39 91317-06025 BOLT HEX. SOCKET HEAD 30
40 91317-06070 BOLT HEX. SOCKET HEAD 2
41 91317-08030 BOLT HEX. SOCKET HEAD 4
42 90115-12J040 BOLT, WELD 16
42-1 90115-12J045 BOLT,HEX.SOCKET HEAD 16 (2005/11/30) MB00086 NG
43 90115-12J080 BOLT HEX. SOCKET HEAD 16
44 90K81-200002 CAP C6 30 (2005/8/16) MB80011
45 KGJ-M2609-00X WASHER 32 (2005/11/30) MB00086
45-1 90990-28J014 WASHER,PLAIN 32 (2007/12/7) MDX0084 OK
