1 KGA-M4110-00X BOX ASSY. C/R 1
2 KGA-M4510-00X MOTHER BOARD ASSY. 1
3 KM5-M5840-03X SERVO BOARD ASSY 2
3-1 KM5-M5840-04X SERVO BOARD ASSY 2 2002/5/9 M100113 OK
3-2 KM5-M5840-05X SERVO BOARD ASSY 1 H010235 (2007/1/12) MCY0115 Set
4
KW3-M4209-00X SYSTEM UNIT ASSY. 1 S.T.D (2003/9/24) M390061
KW3-M4209-10X SYSTEM UNIT ASSY. 1 IT OPTION without CLI FEEDER (2003/9/24) M390061
KW3-M4209-21X SYSTEM UNIT ASSY. 1 IT OPTION with CLI FEEDER (2004/2/10) M420003
4-1
KW3-M4209-A0X SPARE SYSTEM UNIT 1 IT OPTION without CLI FEEDER (2007/3/28) H010416 NG
KW3-M4209-B0X SPARE SYSTEM UNIT 1 IT OPTION with CLI FEEDER (2007/3/28) H010416 NG
5 KJ0-M5810-K4X DRIVER BOARD ASSY. 1 (1B)
5-1 KJ0-M5810-K5X DRIVER BOARD ASSY. 1 H010235 (2007/1/12) MCY0115 Set
5-2 KJ0-M5810-K7X DRIVER BOARD ASSY. 1 (2008/9/18) ME90031 OK
6 KM5-M5882-11X D.POWER ASSY. 1
7 KJ0-M4134-10X PANEL NO SERVO 2
8 KJ0-M4132-10X PANEL. NO DRIVER 1
9 KGA-M4185-10X FAN MOTOR ASSY 3
10 KGA-M5303-00X SW POWER DC5 1
10-1 KGS-M5303-00X SW POWER DC5 1 2007/7/25 MCY0159 NG
11 KW7-M5303-10X SW POWER DC12 1
11-1 KGS-M5303-10X SW POWER DC12 1 2007/7/25 MCY0159 NG
12 KGA-M53E2-00X TRANS 1 ASSY KGA 1

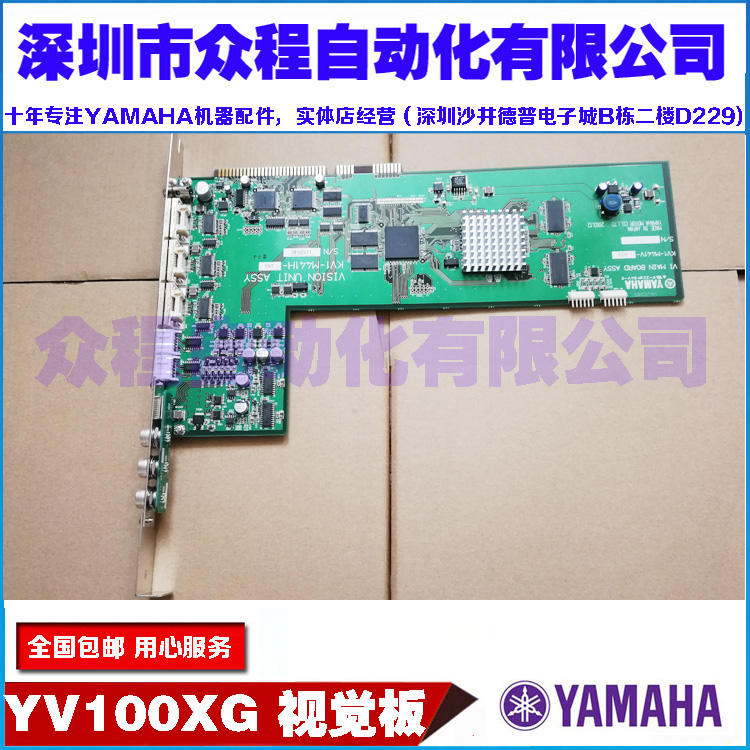

13 KV1-M441H-14X VISION UNIT ASSY 1
13-1 KV1-M441H-17X VISION UNIT ASSY 1 *OK : after VGOS V1.15 R1.000 (2004/9/10) MA90036,H8430 *NG
13-2 KV1-M441H-18X VISION UNIT ASSY. 1 (2009/3/9) MF30012 OK
14 KW3-M4220-10X APPL BOARD ASSY 1
14-1 KW3-M4220-11X APPL BOARD ASSY 1 (2008/4/11) ME30249 Set
15 KGA-M4136-10X PANEL, NO VISION 1
16 KW3-M4255-00X FLASH DISK 1
16-1 KGN-M4255-00X FLASH DISK 1 With ADAPTER (2003/6/27) M230020 OK
16-2 KGN-M4255-20X FLASH DISK 1 Without ADAPTER (2003/11/13) M3X0032 NG
17 KW3-M4256-00X CD-ROM DRIVE 1
18 KW3-M4230-00X FLASH BOARD ASSY 1
18-1 KGN-M4230-00X FLASH BOARD ASSY 1 (2003/11/13) M3X0032
18-2 Delete (2007/3/27) MD30054
