1 KGS-M2604-00X SUPPORT UNIT 2
2 KGS-M260A-00X TAPE, Y AXIS 1
3 KGS-M260B-00X TAPE, Y DUCT 1
4 KGS-M260C-00X TAPE 2, Y DUCT 1
5 KGS-M260D-00X TAPE 3, Y DUCT 1
6 KGS-M2611-00X FRAME R, Y AXIS 1
7 KGS-M2612-00X FRAME L, Y AXIS 1
8 KGS-M2628-00X LOCK NUT 2
9 KGS-M2641-00X HOLDER, MOTOR Y 2
10 KGS-M2642-00X HOLDER, BRG. Y 2
11 KGS-M2643-00X HOUSING, BRG. Y 2
12 KGS-M2644-00X COVER, BRG. HOUSING 2
13 KGS-M2645-00X BRG., ANGULAR 2
13-1 KGS-M2645-01X BRG., ANGULAR 2 (2006.08.29) MC80062 OK
14 KGS-M2647-00X OIL SEAL 4
15 KGS-M2648-00X SPACER 6
16 KV7-M2651-00X DAMPER, STOPPER 4
17 KV7-M2653-00X PIN, PARALLEL 2
18 KGS-M2654-00X PLATE, DAMPER 4
19 KGS-M2655-00X BLOCK 1, STOPPER 2
20 KGS-M2656-00X BLOCK 2, STOPPER 2
21 91317-04008 BOLT HEX. SOCKET HEAD 8
22 91317-06025 BOLT HEX. SOCKET HEAD 8
23 91317-08020 BOLT HEX. SOCKET HEAD 4
24 KGS-M2652-10X BRACKET, STOPPER 1 2
25 91314-04008 BOLT HEX. SOCKET HEAD 11
26 92903-04200 WASHER PLAIN 9
27 KGS-M2666-00X HOLDER, NUT Y AXIS 2
28 KGS-M2671-00X SCREW BALL Y AXIS 2

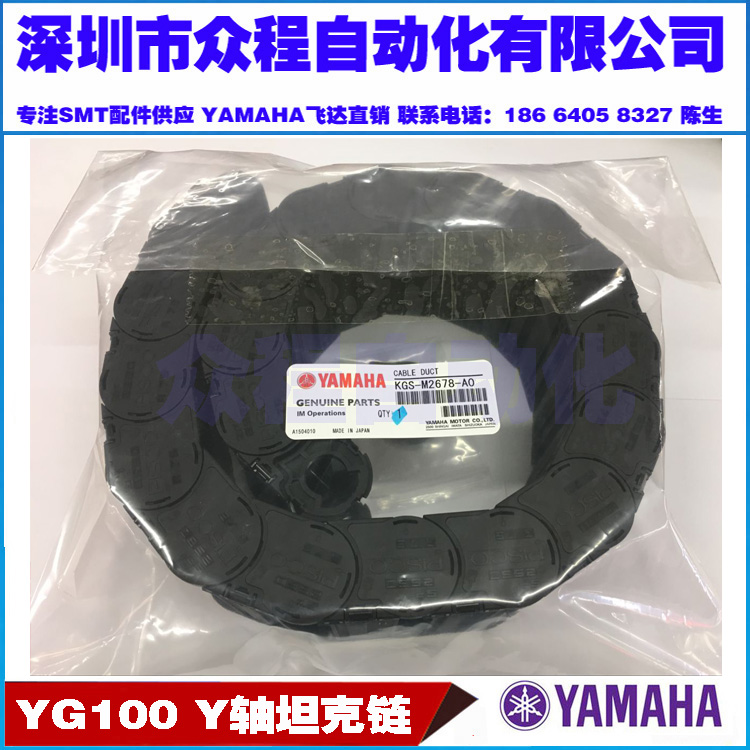

29 KGS-M2678-A0X GUIDE, CABLE Y 1
30 KGS-M2694-00X BRACKET A, GUIDE 1
31 KGS-M2695-01X BRACKET B, GUIDE 1
32 KGS-M26F1-00X FRAME 1 1
33 KGS-M26F2-00X FRAME 2 1
34 KGS-M26F3-00X FRAME 3 1
35 KGS-M26F4-00X DUCT, HARNESS 1
36 KGS-M26F5-00X BRACKET, HARNESS 1
37 KGR-M260A-00X SENSOR, ORG (L=1000) 1
38 KGR-M260B-00X SENSOR, OT (L=1000) 1
39 KGR-M2611-00X COUPLING, Y-AXIS 2
40 KGT-M2667-00X PLATE 1
41 KGT-M2698-00X PLATE 1, CLAMP 1
42 KV7-M2266-00X PLATE, NUT 1
43 KV7-M2268-00X BRACKET 1, TAPE 1
44 KV7-M2269-00X BRACKET 2, TAPE 1
45 KV7-M2646-00X COIL SPRING 12
46 KV7-M2661-00X NYLOCK BOLT (M12X50) 20
47 KV7-M2662-01X NYLOCK BOLT (M6X30) 16
48 KV7-M2663-00X NYLOCK BOLT (M5X16) 40
49 KV7-M2676-S2X Y-AXIS GUIDE SET 2
50 KV7-M2682-01X DOG, ORG. 1
51 KV7-M2683-01X DOG, 2ND LIMIT 2
52 KV7-M2691-02X BRACKET, SENSOR 1
53 90201-124G9 WASHER, PLAIN 20
54 90K63-611404 AC SERVO MOTOR 2
55 91314-05010 BOLT HEX. SOCKET HEAD 4
56 91314-06010 BOLT HEX. SOCKET HEAD 28
57 91317-04010 BOLT HEX. SOCKET HEAD 12
58 91317-04030 BOLT HEX. SOCKET HEAD 12
59 91317-05008 BOLT HEX. SOCKET HEAD 2
60 91317-05010 BOLT HEX. SOCKET HEAD 4
61 91317-05018 BOLT HEX. SOCKET HEAD 8
62 91317-06008 BOLT HEX. SOCKET HEAD 2
63 91317-06016 BOLT HEX. SOCKET HEAD 8
64 91317-06018 BOLT HEX. SOCKET HEAD 8
65 92903-06200 WASHER PLAIN 20
66 92907-04200 WASHER PLAIN 12
67 92990-04400 WASHER EXTL. TOOTHED 5
68 92990-06400 WASHER EXTL. TOOTHED 20
69 97604-04308 SCREW, PAN HEAD W/W 6
70 98903-03004 SCREW BINDING HEAD 4
71 98903-03008 SCREW BINDING HEAD 2
